Air Disc
16 SKUs providing 95%+ coverage for all popular Air Brake systems:
- Bendix® ADB22X, SK7, SN7, ADB225
- Meritor® EX225H2, L2
- WABCO® Pan 17, 19 & 22
(DAS) Series
DuraGo Air Disc Brake Rotors (DAS Series) are engineered for extreme durability and meet all requirements of fit, form and function. To ensure dependable performance, DAS Brake Rotors are manufactured in IATF 16949:2016 certified facilities with premium ASTM G3500b metallurgy. Our utilization of ASTM G3500b metallurgy and leading-edge casting design provides better tensile strength and excellent heat dissipation resulting in dependable performance and a long service life.
Each brake rotor is coated with a Geomet® coating rebranded as DuraNetic™. DuraGo DuraNetic™ coating is a premium rust resistant barrier engineered with metal oxides, metallic zinc and aluminum flakes. The zinc and aluminum particles align in multiple layers forming a metallic inorganic silver coating to ensure ultimate corrosion resistance.
DuraGo Air Disc rotors offer premium features for
heavy duty Air Disc performance!
F -STYLE
H-STYLE
U-STYLE

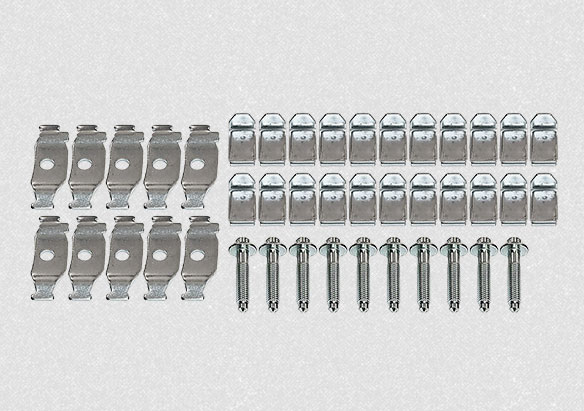

Hardware
Hardware include on BR950000-04, For Bendix® / Knorr-Bremse ADB22X™ and ADB225™.
DuraNetic™
Rust-resistant coating to ensure ultimate corrosion resistance.
High Carbon ASTM G3500b Metallurgy
For enhanced heat dissipation.
Air Disc Parts Comparison Chart
|
DuraGo |
OE # |
Bendix® / Knorr-Bremse |
Meritor® |
WABCO® |
Webb® |
|
BR950000-04 |
802569 |
802569 |
M44DH802569 / M44D76692 |
56094PK |
|
|
BR950002-04 |
CT832 |
M44D71601 |
CT832 |
55031PK65 |
|
|
BR950004-04 |
K034497 / Z000557 / 658470 |
K034497 / Z000557 |
M44D76642 |
||
|
BR950006-04 |
K021958 |
K021958 |
M44DK021958 / M44D76612 |
56024P |
|
|
BR950008-04 |
802081 |
802081 |
M44D802081 / M44D76618 |
56096P |
|
|
BR950010-04 |
CT807 |
M44D76613 |
CT807 |
55032PK65 |
|
|
BR950012-04 |
R6206M |
M44D6225 / M44D6206 |
55090P |
||
|
BR950014-04 |
802082 |
802082 |
M44D802082 / M44D76617 |
56095P |
|
|
BR950016-04 |
Z006407 / 802669 / 611300 |
Z006407 / 802669 |
M44D802669 / M44D76641 |
55080F / 55080P |
|
|
BR950018-04 |
CT826 |
M44D75180 / M44AD75180 |
CT826 |
||
|
BR950020-04 |
68326014 |
68326014 |
54220P |
||
|
BR950022-04 |
23123642002 |
23123642002 |
55060P |
||
|
BR950024-04 |
N508030038 / N508030040 |
K069799 |
M44D76621 |
55040P |
|
|
BR950026-04 |
II37415N |
II37415N |
M44D37415 / M44D76603 |
56022P |
|
|
BR950028-04 |
23123647002 |
23123647002 |
55070P |
||
|
BR950030-04 |
K021959 / II37986 |
K021959 / II37986 |
M44DK021959 / M44D76604 |
56050F / 56050P |
Air Disc Rotor Chart
|
Outside Diamter |
Overall Height |
Mounting Bolt Hole Circle Diameter |
Center Hole Diameter |
Nominal Thickness |
Discard Thickness |
||||||||||||||
|
DuraGo |
Vechicle Type |
System / Application |
Rotor Type |
(mm) |
(in) |
(mm) |
(in) |
Mounting Bolt |
Mounting Bolt Hole Diameter |
(mm) |
(in) |
(mm) |
(in) |
ABS Tone Ring Included |
(mm) |
(in) |
(mm) |
(in) |
Rotor Weight (lbs) |
|
BR950000-04 |
Truck / Trailer |
Bendix® / Knorr-Bremse ADB22X™ and ADB225™ |
Flat Splined |
432 |
17.01 |
45 |
1.77 |
N/A |
N/A |
N/A |
N/A |
N/A |
N/A |
No |
45 |
1.77 |
37 |
1.46 |
59.5 |
|
BR950002-04 |
Trailer |
WABCO PAN™ 19 |
U-Shaped |
377.5 |
14.86 |
150 |
5.91 |
10 |
M16-2 |
249.5 |
9.82 |
220 |
8.66 |
Cast-In |
45 |
1.77 |
37 |
1.46 |
61 |
|
BR950004-04 |
Transit / Coach |
Knorr-Bremse SB/SN7 |
Hat-Shaped |
430 |
16.93 |
104.7 |
4.12 |
14 |
14.75 mm |
165 |
6.50 |
135 |
5.31 |
No |
45 |
1.77 |
37 |
1.46 |
78 |
|
BR950006-04 |
Transit / Coach |
Knorr-Bremse SB/SN7 |
U-Shaped |
430 |
16.93 |
131 |
5.16 |
10 |
M16-1.5 |
235 |
9.25 |
203 |
7.99 |
No |
45 |
1.77 |
37 |
1.46 |
76 |
|
BR950008-04 |
Truck / Trailer |
Bendix® / Knorr-Bremse ADB22X™ and ADB225™ |
U-Shaped |
430 |
16.93 |
138.3 |
5.44 |
10 |
5/8″-11 |
249.5 |
9.82 |
220 |
8.66 |
No |
45 |
1.77 |
37 |
1.46 |
74.5 |
|
BR950010-04 |
Trailer |
WABCO PAN™ 22 |
U-Shaped |
430 |
16.93 |
150 |
5.91 |
10 |
M16-2 |
249.5 |
9.82 |
220 |
8.66 |
Cast-In |
45 |
1.77 |
38 |
1.50 |
71 |
|
BR950012-04 |
Truck |
Haldex DB22LT |
U-Shaped |
430 |
16.93 |
150 |
5.91 |
10 |
5/8″-11 |
249.5 |
9.82 |
220 |
8.66 |
Cast-In |
45 |
1.77 |
37 |
1.46 |
74.5 |
|
BR950014-04 |
Truck / Trailer |
Bendix® / Knorr-Bremse ADB22X™ and ADB225™ |
U-Shaped |
430 |
16.93 |
150 |
5.91 |
10 |
5/8″-11 |
249.5 |
9.82 |
220 |
8.66 |
No |
45 |
1.77 |
37 |
1.46 |
86.2 |
|
BR950016-04 |
Transit / Coach |
Knorr-Bremse SB/SN7 |
Hat-Shaped |
430 |
16.93 |
115 |
4.53 |
14 |
15 mm |
165 |
6.50 |
135 |
5.31 |
No |
45 |
1.77 |
37 |
1.46 |
78 |
|
BR950018-04 |
Trailer |
WABCO PAN™ 17 |
U-Shaped |
325 |
12.80 |
148.5 |
5.85 |
8 |
M14-2 |
196 |
7.72 |
169 |
6.65 |
Cast-In |
34 |
1.34 |
28 |
1.10 |
42 |
|
BR950020-04 |
Transit / Coach |
Meritor EX225H2 |
Hat-Shaped |
434 |
17.09 |
131 |
5.16 |
12 |
19 mm |
168 |
6.61 |
135 |
5.31 |
No |
45 |
1.77 |
41.5 |
1.63 |
80 |
|
BR950022-04 |
Transit / Coach |
Meritor EX225 / MCI |
U-Shaped |
434 |
17.09 |
143.3 |
5.64 |
10 |
5/8″-18 |
266.7 |
10.50 |
215.9 |
8.50 |
No |
45 |
1.77 |
37 |
1.46 |
80 |
|
BR950024-04 |
Truck |
MAN/New Flyer/Van Hool |
Hat-Shaped |
432 |
17.01 |
130 |
5.12 |
12 |
19 mm |
168 |
6.61 |
131 |
5.16 |
No |
45 |
1.77 |
130 |
5.12 |
77 |
|
BR950026-04 |
Transit / Coach |
Knorr-Bremse SB/SN7 |
U-Shaped |
434 |
17.09 |
136 |
5.35 |
10 |
M16-1.5 |
220 |
8.66 |
194 |
7.64 |
No |
45 |
1.77 |
37 |
1.46 |
79 |
|
BR950028-04 |
Transit / Coach |
Bendix® ESD-225™ |
U-Shaped |
433.5 |
17.07 |
143.3 |
5.64 |
10 |
M16-2 |
249.2 |
9.81 |
222 |
8.74 |
Bolt-On |
45 |
1.77 |
41 |
1.61 |
81.63 |
|
BR950030-04 |
Transit / Coach |
Knorr-Bremse SB/SN7 |
U-Shaped |
430 |
16.93 |
134.9 |
5.31 |
10 |
5/8″-18 |
250 |
9.84 |
194 |
7.64 |
Cast-In |
45 |
1.77 |
37 |
1.46 |
96 |
***Bendix®, Meritor®, WABCO® and Webb® brand names and trademarks appearing in this guide are the property of their respective owners and are used here solely for purposes of identification.
DuraGo has no affiliation with any of these manufacturers.
***Interchanges are for reference only. Installation professionals should confirm the part supplied is the correct replacement for fit and function on the specific application.
